RAS MEGAbend
Best when you need reliable, heavy-duty folding for thick sheet metal or large panels — combining automation readiness, strength, and broad flexibility.
RAS Systems
MEGAbend 1/4" Up/Down
The MEGAbend brings full UpDown bending performance — including automatic sequential bends, powerful clamping, and broad material capability — to shops working with medium to thick metals. It is ideal for large or heavy components that challenge traditional press brakes, and offers automation-ready workflows for efficient production.
UpDown folding with automatic sequence control
With automatic part programming via Bendex and optional MetalLift loading/unloading, MEGAbend enables efficient, ergonomic processing of large/heavy components with minimal operator effort.
With automatic part programming via Bendex and optional MetalLift loading/unloading, MEGAbend enables efficient, ergonomic processing of large/heavy components with minimal operator effort.
Strong structural design with intelligent crowning
Its deep folding beam, strong box-shaped upper beam, and PowerBooster system deliver stable, straight bends even on thick sheets and long flanges; automatic beam adjustment compensates for thickness and bend-radius changes.
Its deep folding beam, strong box-shaped upper beam, and PowerBooster system deliver stable, straight bends even on thick sheets and long flanges; automatic beam adjustment compensates for thickness and bend-radius changes.
Large work envelope and tooling flexibility
Supports bending up to 6 mm (1/4") mild steel, offers replaceable segmented tools, automatic clamping, and freedom for complex geometries. Suction-based stop/gauging system and automatic bending sequences boost throughput and reduce manual intervention.
Supports bending up to 6 mm (1/4") mild steel, offers replaceable segmented tools, automatic clamping, and freedom for complex geometries. Suction-based stop/gauging system and automatic bending sequences boost throughput and reduce manual intervention.
RAS Systems

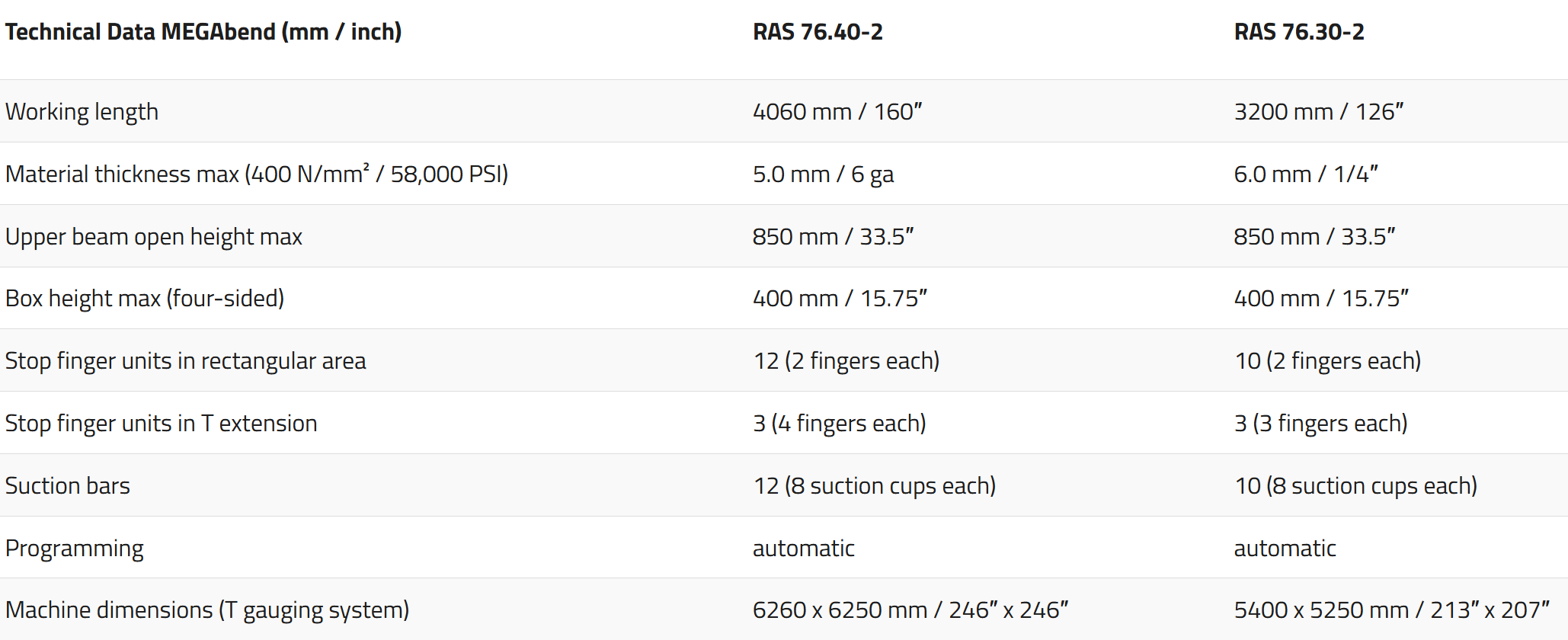

MEGAbend Technical Specifications
*Available: MEGABend 1/4’ Up/Down Folder
