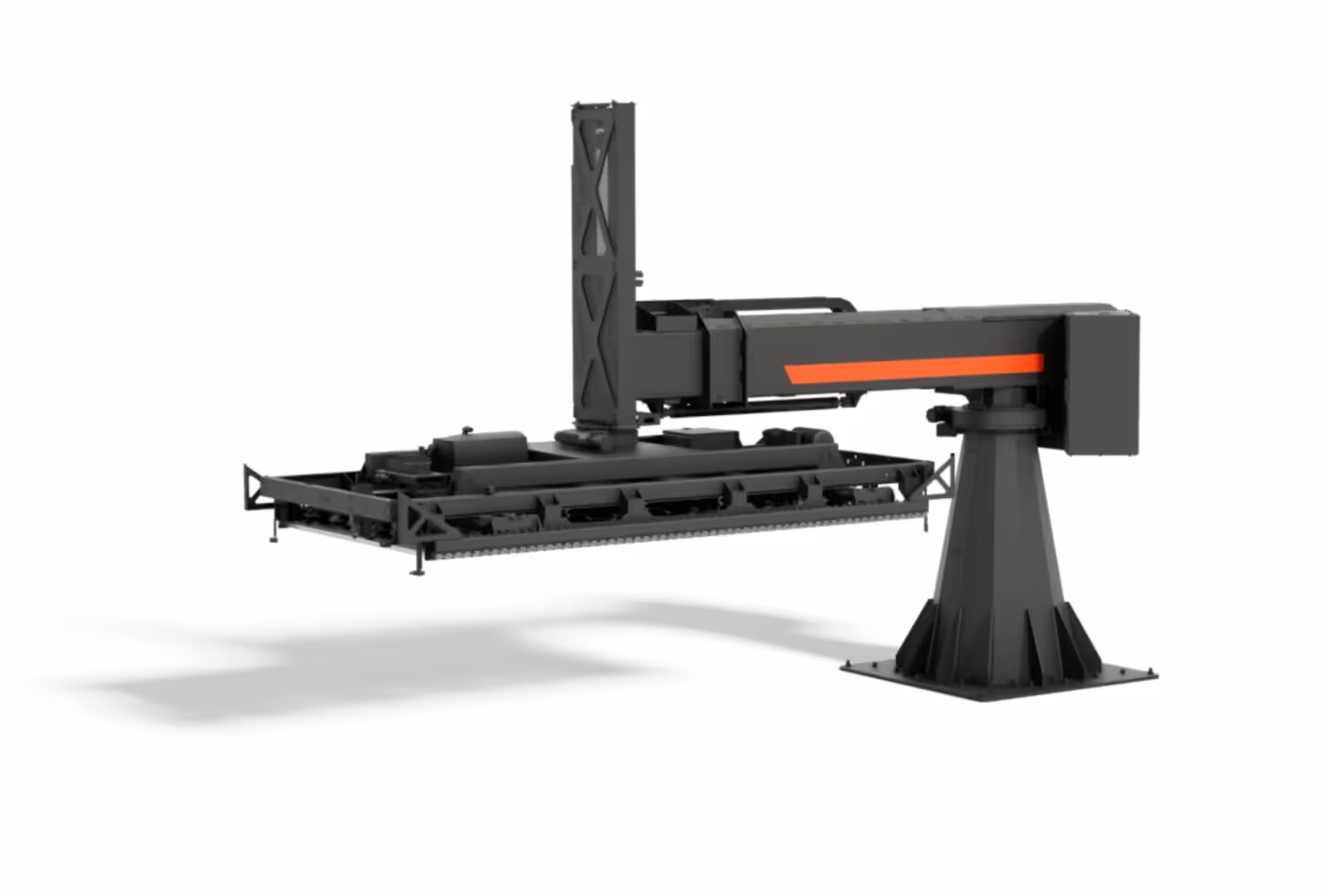

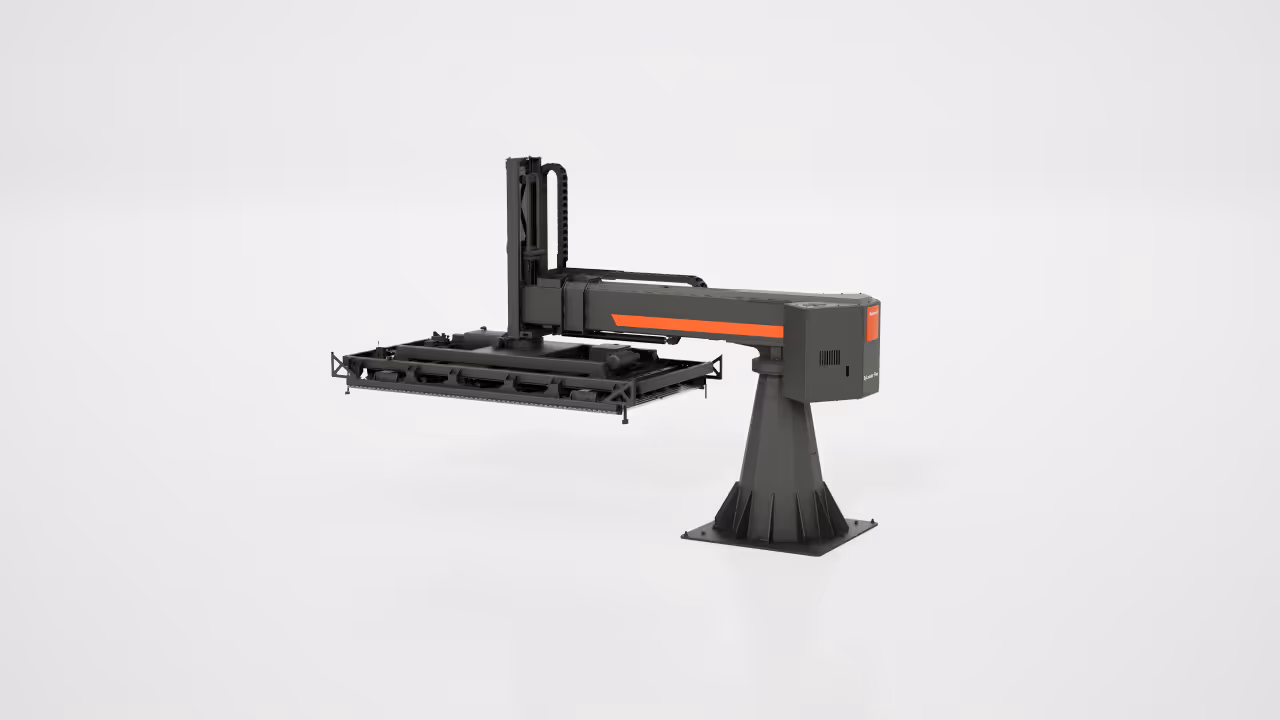

Bystronic ByLoader Flex
Cost-Effective Automated Sheet Metal Handling for Laser Cutting Systems
Efficient Load & Unload Automation
Invest in Proven Reliability

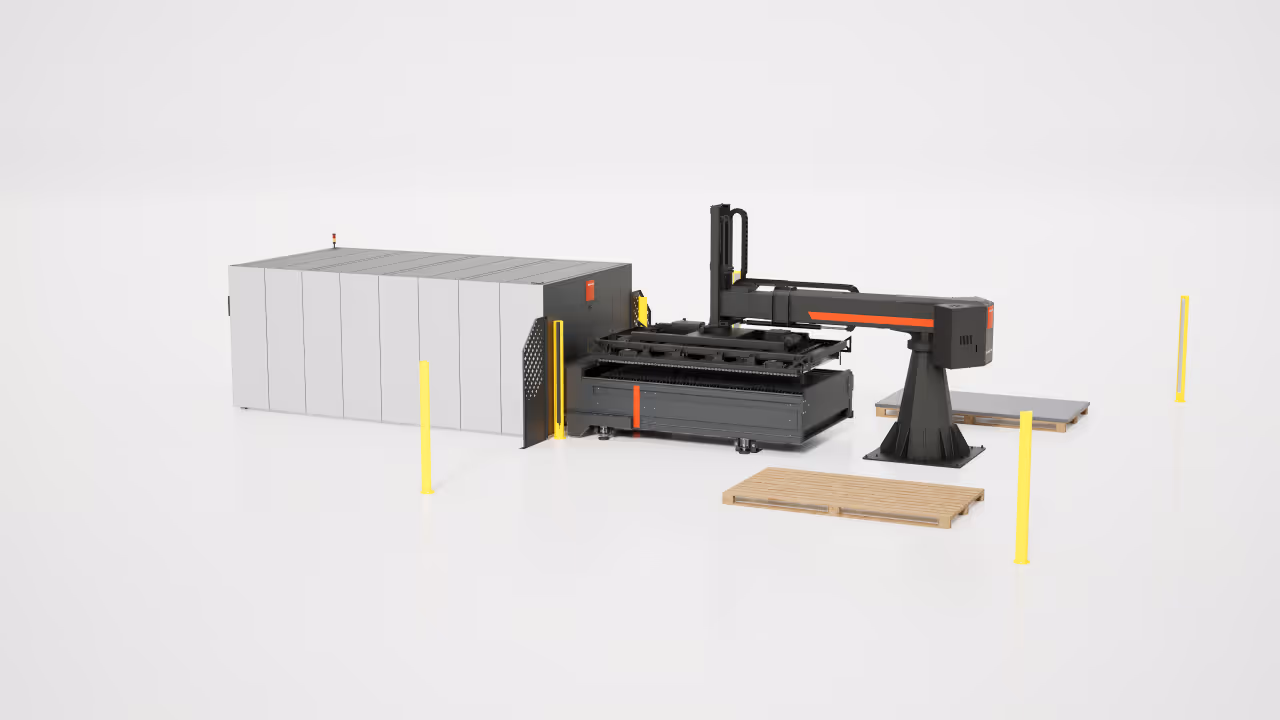

The Bystronic ByLoader Flex delivers reliable, affordable automation for loading and unloading sheet metal on your Bystronic laser cutting system. Designed to boost throughput, reduce manual labor, and integrate easily with your workflow, the ByLoader Flex takes care of material handling so your operators can focus on higher-value tasks. Its flexible design even enables one automation unit to serve two laser cutters simultaneously, making it a smart productivity upgrade for shops of all sizes.
Efficient Load & Unload Automation
Automates the transfer of raw sheets to the shuttle table and removal of cut parts, streamlining material handling to improve machine utilization and reduce idle time.
Automates the transfer of raw sheets to the shuttle table and removal of cut parts, streamlining material handling to improve machine utilization and reduce idle time.
Flexible & Scalable Deployment
Supports easy access to the shuttle table and can be configured to serve up to two laser cutting machines with a single system, giving you versatility in production layouts.
Supports easy access to the shuttle table and can be configured to serve up to two laser cutting machines with a single system, giving you versatility in production layouts.
Quick Integration & Simple Operation
Installs rapidly with minimal downtime and is controlled through the laser system’s operator interface, providing seamless operation with familiar controls.
Installs rapidly with minimal downtime and is controlled through the laser system’s operator interface, providing seamless operation with familiar controls.
Bystronic
ByLoader Flex Technical Specifications
ByLoader Flex 3015
ByLoader Flex 4020
Min sheet dimension
78.74 x 39.37 in
78.74 x 39.37 in
Max sheet dimension
118.11 x 59.1 in
157.48 x 78.74 in
Min sheet thickness
0.03 in
0.03 in
Max sheet thickness
0.98 in
0.98 in
Max weight (single sheet)
1.984,16 lbs
2.821,92 lbs
Max weight stack
6.613,8 lb
11.023,1 lb
Cycle time
200* sec
200* sec
Turning angle
360 degrees
360 degrees
* The cycle time may vary based on loading/unloading position and number of pallets used.
