Bystronic BySort
The Next Step in Automation: Fully automatic sorting to refine your workflow.
Optimized Process Flow
Transition to Fully Automated Sorting to Unlock Peak Operational Efficiency
The BySort system is designed to advance your automated production capabilities. By speeding up downstream manufacturing processes, it ensures a seamless workflow and guarantees the consistently proper handling of all materials and parts.

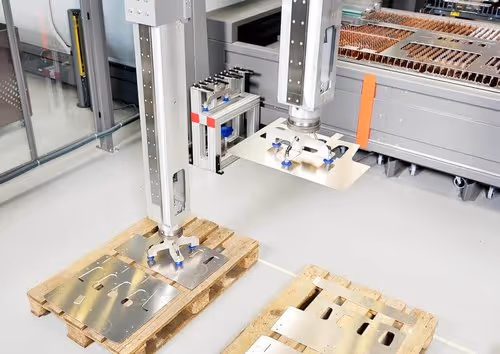

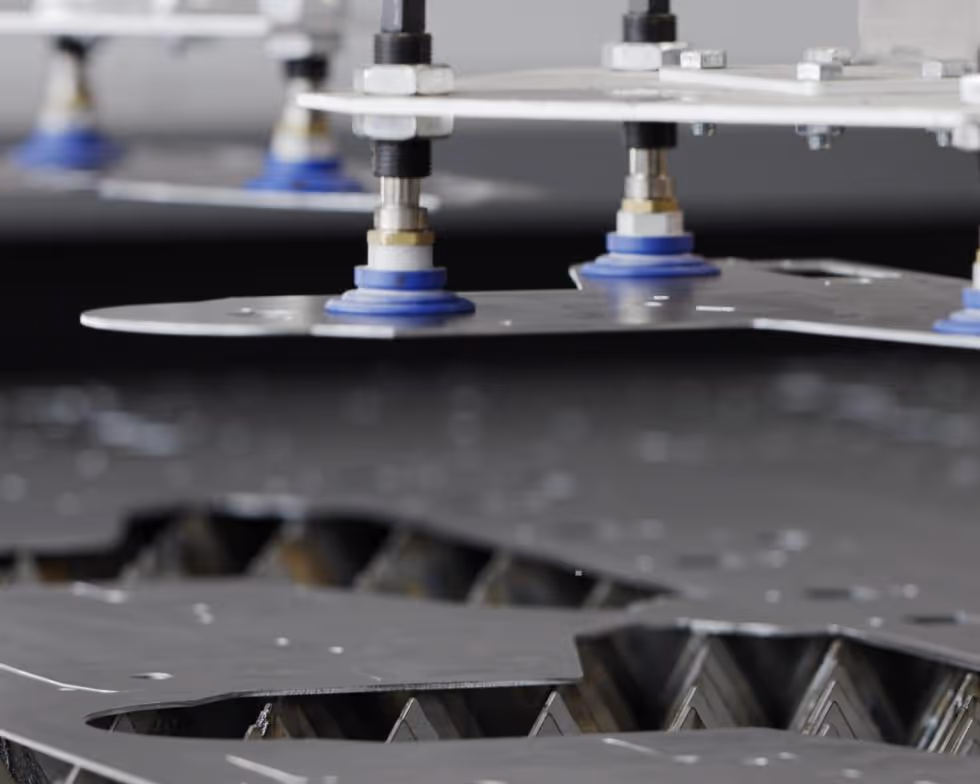

The BySort system enhances processing quality by automating the unloading of completed cut parts, ensuring careful, reliable material handling when paired with the ByTrans Cross. Increased automation during unloading and sorting accelerates subsequent manufacturing steps, boosting overall productivity.
Fully integrated into the BySoft software environment, BySort allows all cutting and unloading plans to be managed from a single touchscreen interface. Operators can control the system directly through the Bystronic laser cutting system’s terminal, simplifying workflow and reducing manual intervention.

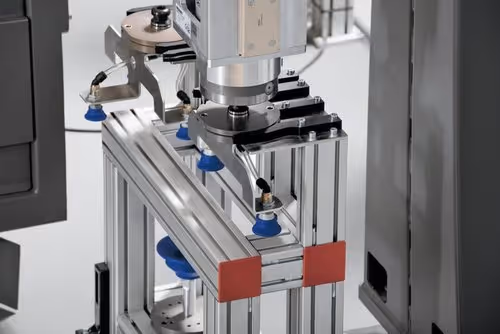

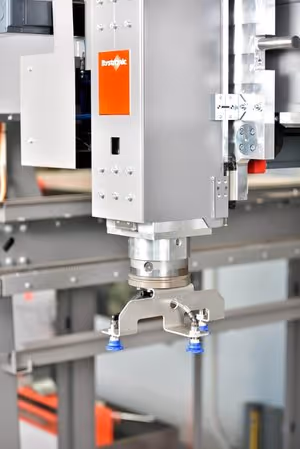

BySort offers maximum flexibility with multiple unloading positions and a variety of gripper modules, adaptable to different part sizes and shapes. The system can be upgraded or retrofitted to existing ByTrans Cross setups at any time, providing a scalable solution for automated parts handling.
BySort
BySort Technical Specifications
BySort 3015
BySort 4020
Nominal Sheet Size
120 × 60 in
157 × 78 in
Sheet Thickness
0.059 – 0.625 in
0.059 – 0.625 in
Number of sorting heads
2
2
Minimum part size
5.9 × 5.9 in
5.9 × 5.9 in
Minimum part size
70 × 47 in
94 × 63 in
Maximum part weight per head
110 lbs
110 lbs
