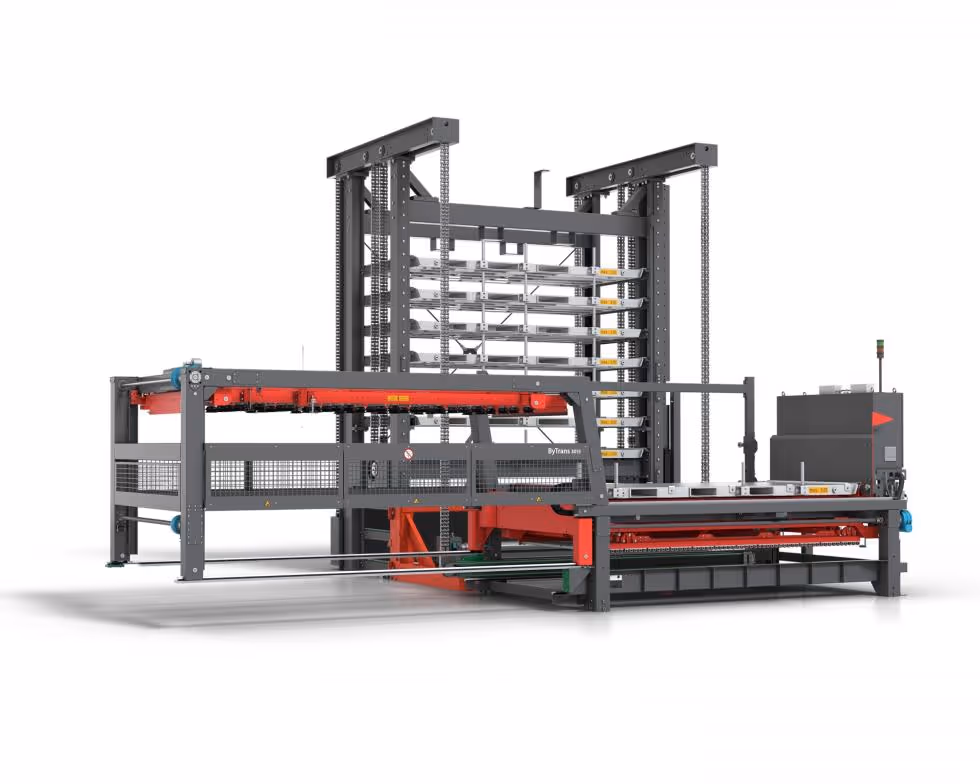

Bystronic ByTrans Extended
Intelligent solution for loading and unloading of laser cutting system.
compact design
A customized, fully automated solution perfectly aligned with your specific operational requirements.

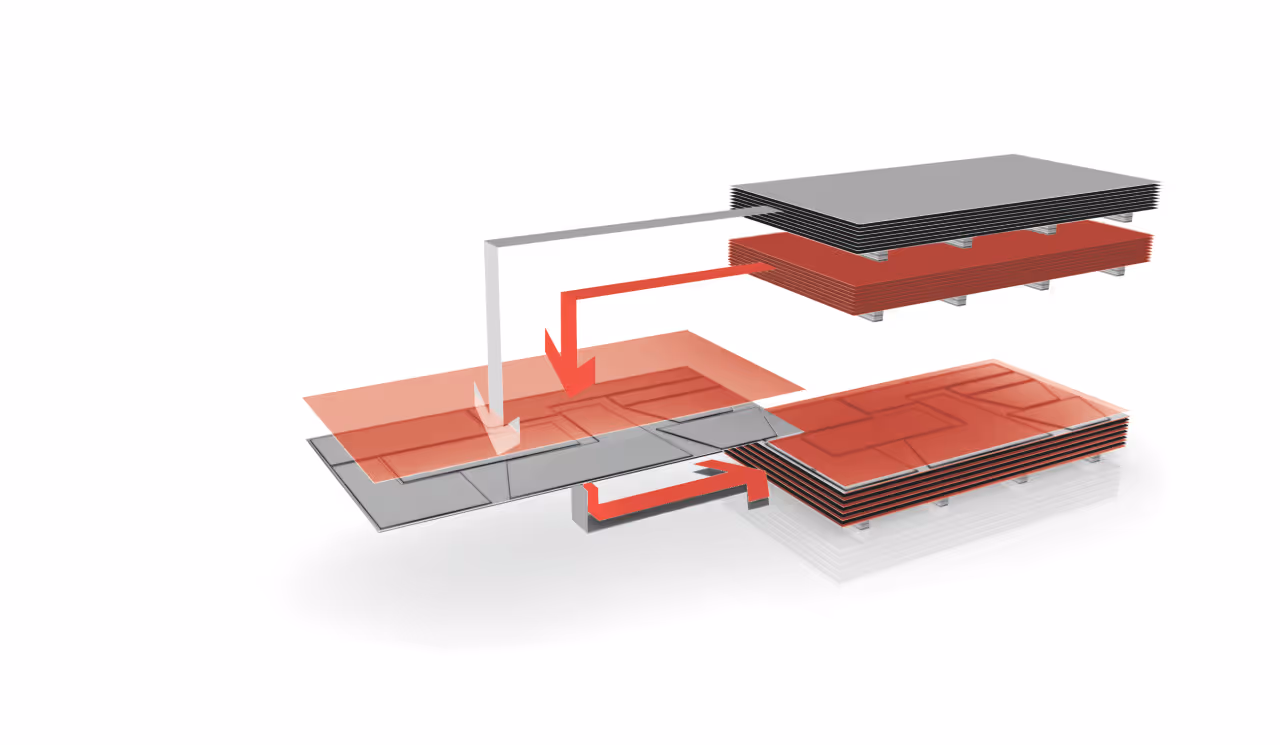

Maximize operational autonomy and protect part quality with an optional second cassette. This key feature allows for increased flexibility in your laser cutting process and automatically dispenses plastic sheets between cut parts during stacking, ensuring surface protection and maintaining the integrity of every component.
The ByTrans Extended significantly accelerates job processing, completing a full loading and unloading cycle in just 60 seconds. This rapid material exchange minimizes downtime between jobs, resulting in higher machine utilization for only a modest increase in investment.
The ByTrans Extended provides a streamlined entry into lightly-manned production. Its high level of automation, combined with reliable material handling and consistent cycle performance, enables manufacturers to maintain stable throughput and efficient operation with reduced staffing requirements.
The ByTrans Extended provides a streamlined entry into lightly-manned production. Its high level of automation, combined with reliable material handling and consistent cycle performance, enables manufacturers to maintain stable throughput and efficient operation with reduced staffing requirements.
bystronic
ByTrans Extended Technical Specifications
ByTrans Extended 3015
ByTrans Extended 4020
Insert Protective Separators
Yes
Yes
Large Parts Removal
Yes
Yes
Load Sheet Metal Thickness
0.030–1.00 in
0.030–0.750 in
Maximum Sheet Weight
1962 lbs
2866 lbs
Nominal Sheet Size
120 x 60 in
157 x 78 in
Number of Cassettes
2
2
Unload Sheet Metal Thickness
0.030–1.00 in
0.030–0.750 in
