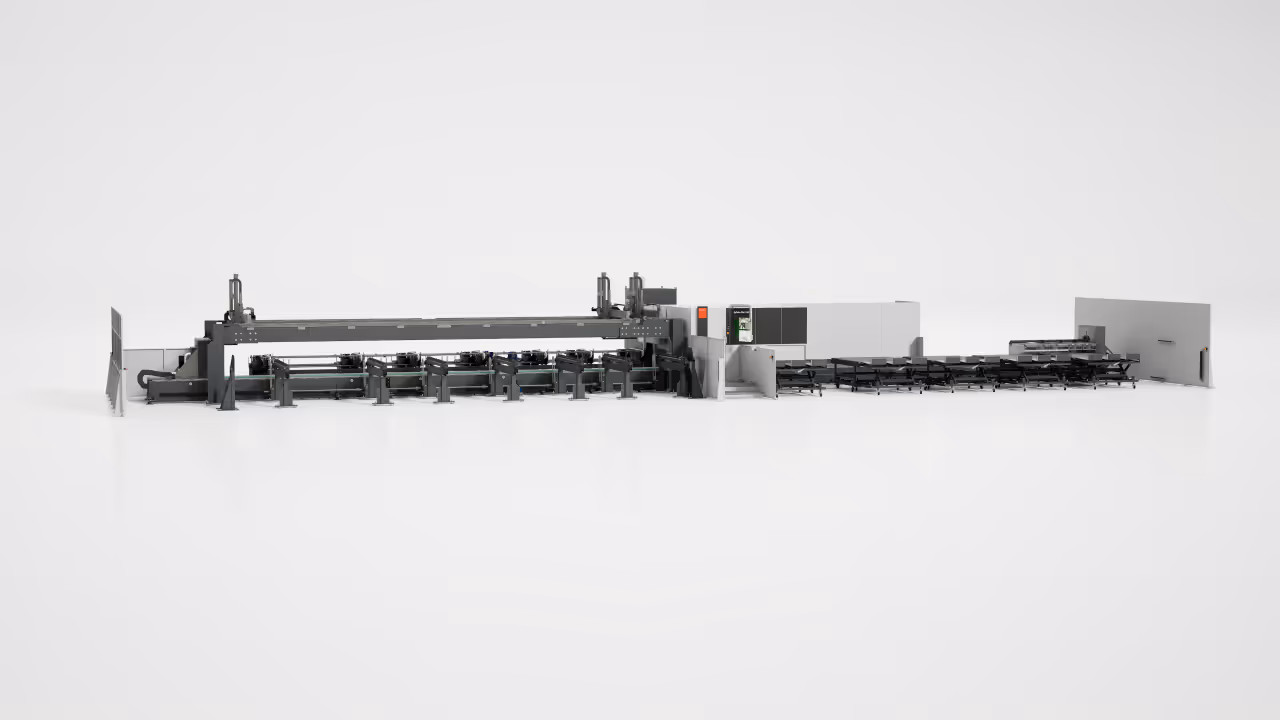

Bystronic ByTube Star 330
Heavy-Duty 3D Tube Laser Cutting.
Extreme Capacity Tube Processing
The ByTube Star 330: Unmatched Tube Laser Versatility
The new ByTube Star 330 sets the standard for versatility, supporting tubes up to 40 feet long and offering 6 or 10 kW of laser power. It automatically processes the entire range of tubes and open sections (from 0.06 feet to 1 foot) with zero set-up time, making it the most capable tube laser available.
The ByTube Star 330 boosts productivity with zero setup time for tubes and open sections up to 1 ft in diameter, extendable to 1.063 ft with minimal manual adjustment. It’s designed to handle all standard profiles with powerful 6 kW or 10 kW laser options.
Its 3D cutting head and QuickCut function deliver high speed and consistent quality across a wide range of tube sizes. Optional features like Laserscan and the Weld Search Camera ensure precise alignment, accurate cuts, and superior finished parts.

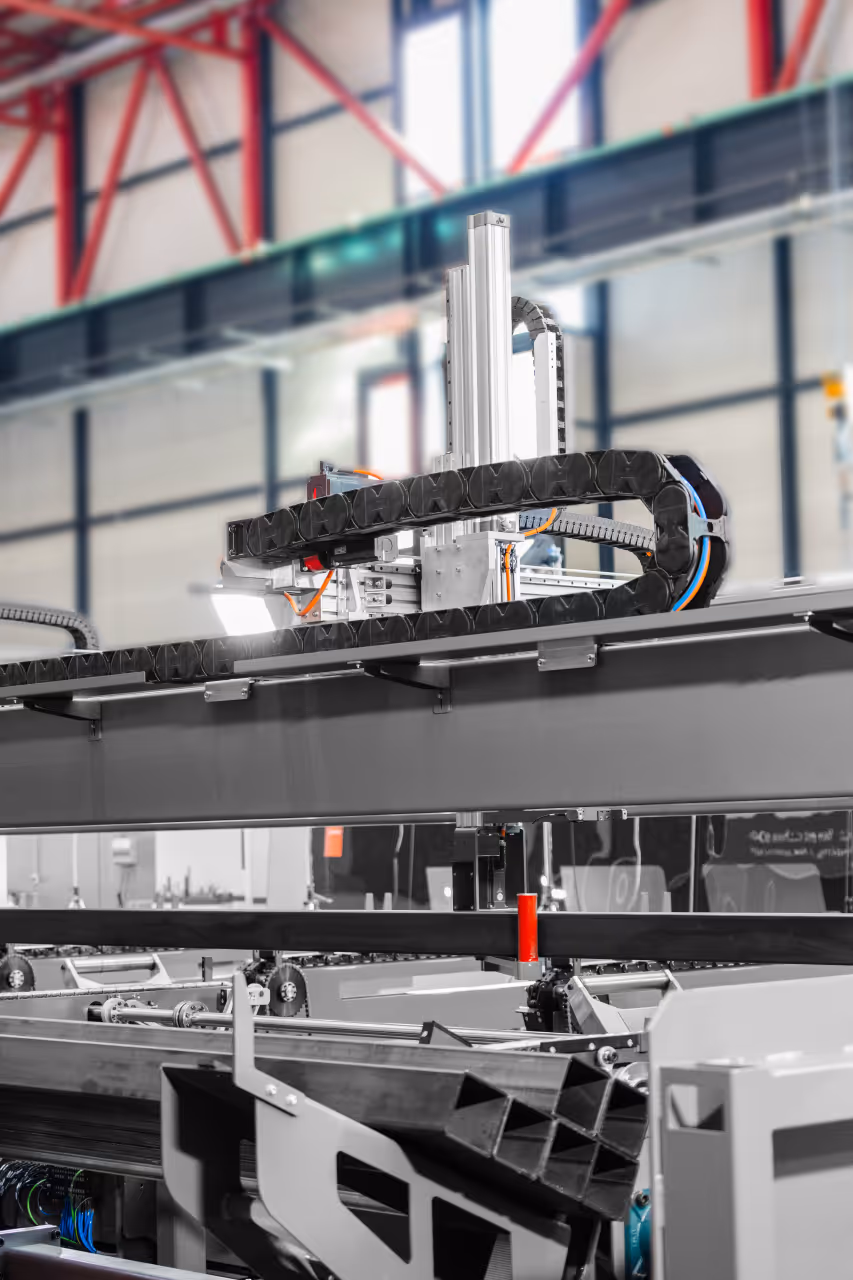

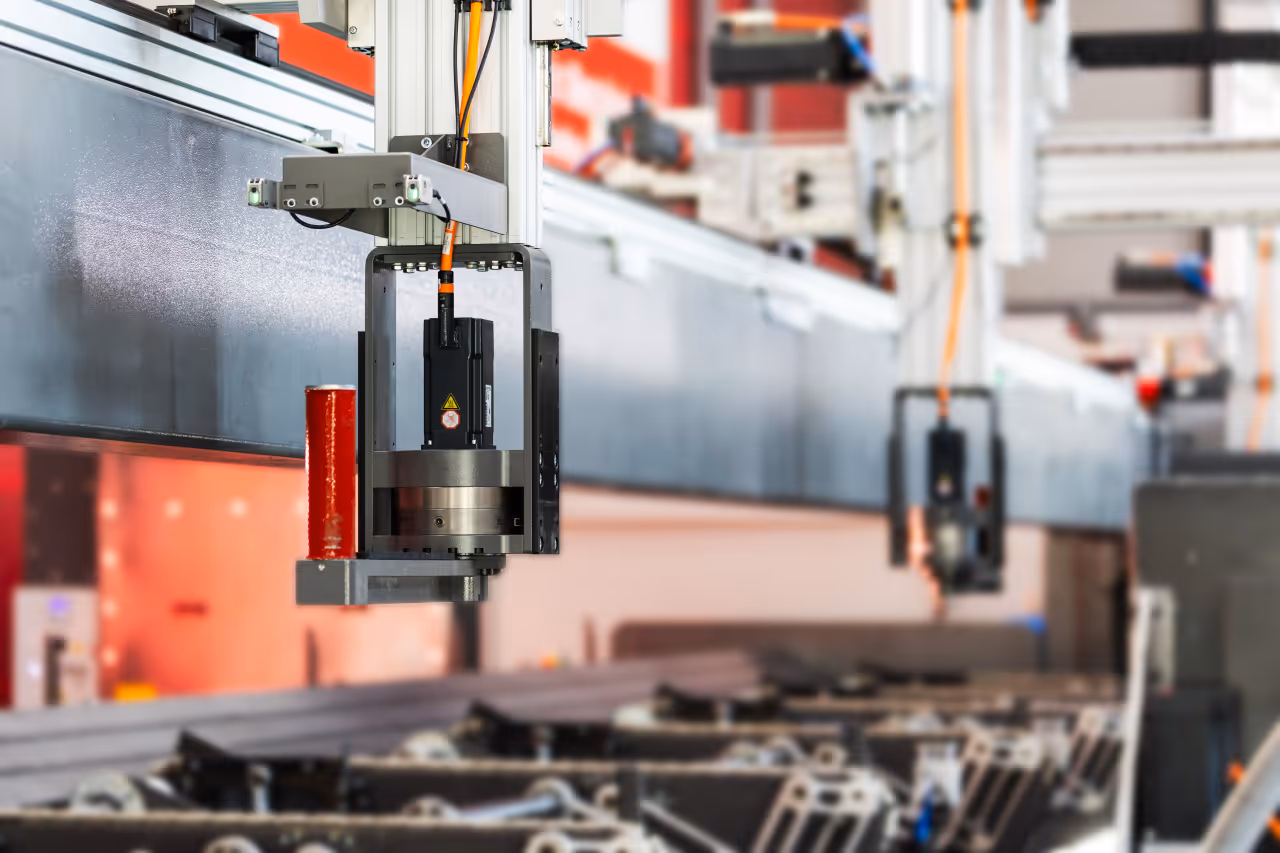

Automation takes efficiency further with fully automatic feeding and sorting of 40-ft tubes, reducing labor and safety risks. With integrated drilling, tapping, marking, and phase cutting, the ByTube Star 330 streamlines production and replaces multiple downstream processes.
bystronic
ByTube Star 330 Technical Specifications
Total weight
88.184 lbs.
Overall length
1285.22 in.
Overall width
403.20 in.
Overall height
147 in.
Load
43.67 lb./ft. maxx
Loading length
41.99 ft., 30.18 ft., 21.33 ft.
Bundle loading max capacity
8.2675 US tons
Maximum chain load
4.5845 US tons
Unloading length
40.03 ft., 27.89 ft., 20.01 ft.
Tubes and open sections
Standard round from .75 in. - 12 in.
Rectangular profile external dimensions
Closed section not round inside box of .75 in. x .75 in., to 10.24 in. x 10.24in.
Open profiles as a retrofit
Open profiles inside box .76 in. x .76 in. to 10.24 in. x 10.24 in.
Open profiles C + L + H (I)
Open profiles C + L + H (I)
Diameter extension set
Option to reach 12.76 in. for round closed sections as optional retrofit
Laser power & type
6 KW, 10 KW / Fiberlaser source
Cutting processes
Nitrogen cutting + oxygen cutting + mixgas + high-pressure air cutting
